LCD Hubmotor Control System 48V 500W
LCD Hubmotor Control System 48V 500W LCD Hubmotor Control System 48V 500W LCD Hubmotor Control System 48V 500W LCD Hubmotor Control System 48V 500W LCD Hubmotor Control System 48V 500W LCD Hubmotor Control System 48V 500W LCD Hubmotor Control System 48V 500W LCD Hubmotor Control System 48V 500W LCD Hubmotor Control System 48V 500W LCD Hubmotor Control System 48V 500W
รหัสสินค้า : LCD-4850
ราคา ฿4,200.00THB
จำนวน
LCD Control System 48V 500W simulation Sine wave controller



รายละเอียดอุปกรณ์ :

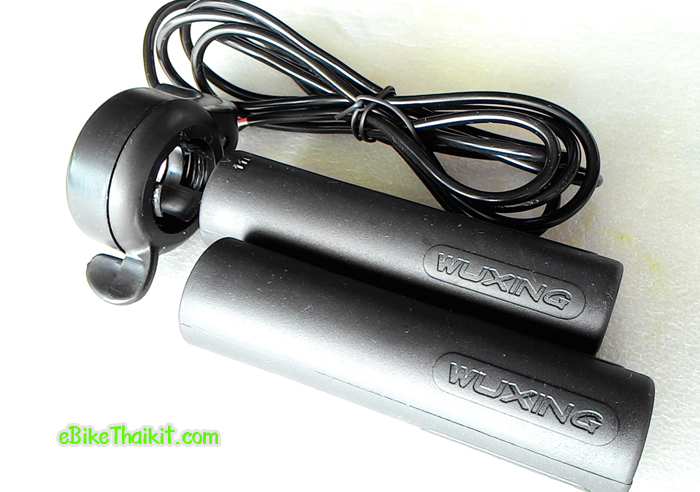

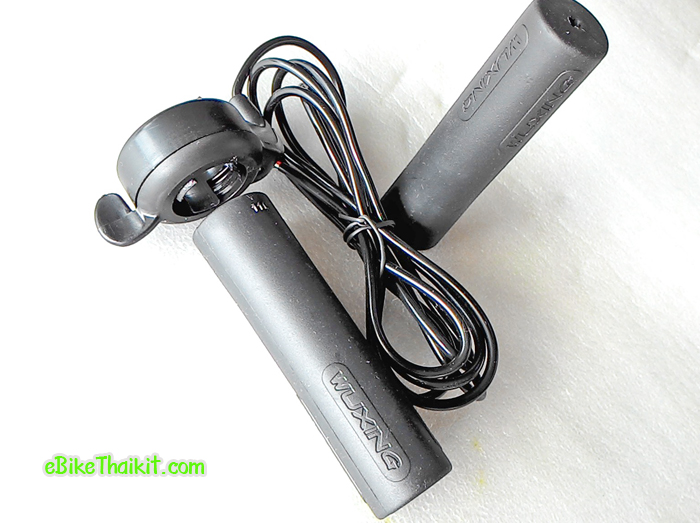

1. คันเร่งแบบนิ้วโป้งบิด อย่างดี

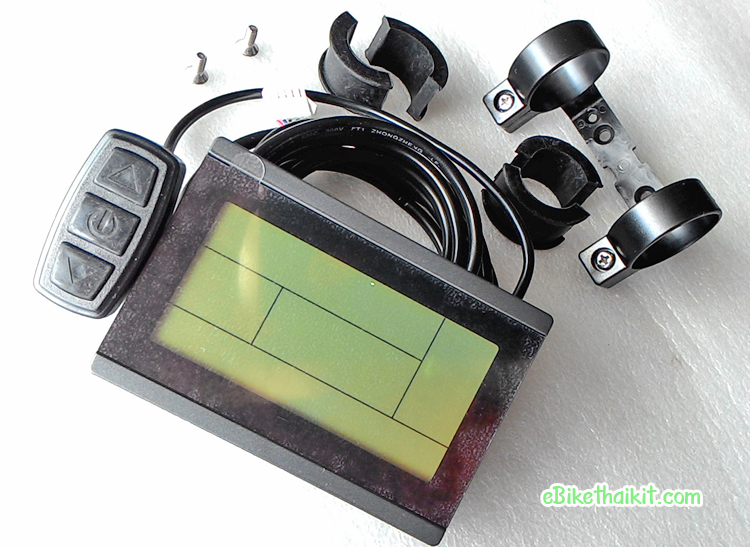

2. จอ LCD-003 พร้อมสวิทช์สั่งงาน และขายึด ---- คู่มือการตั้งค่าและใช้งานแบบละเอียด

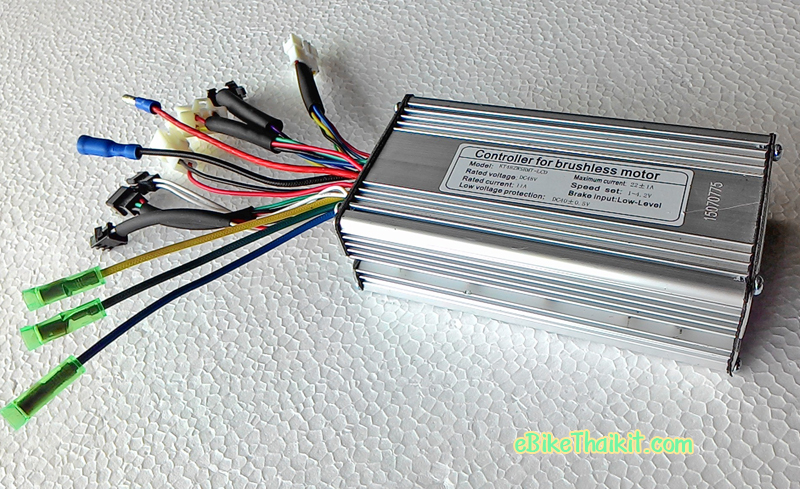

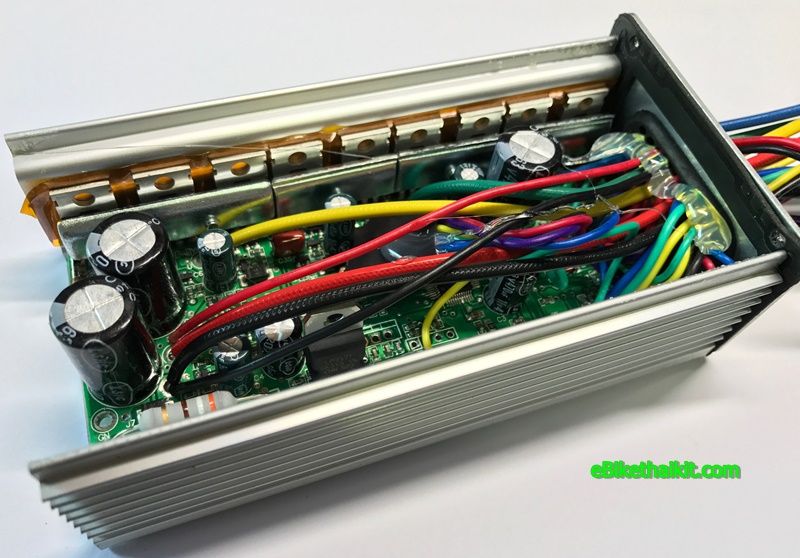

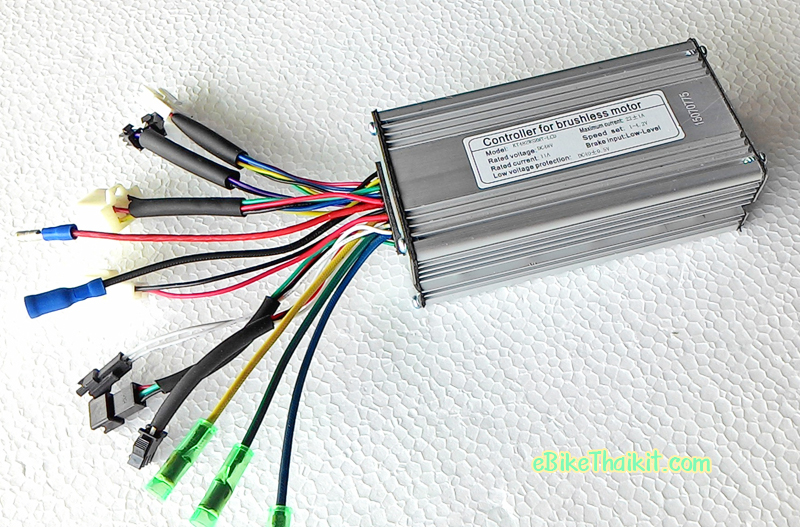

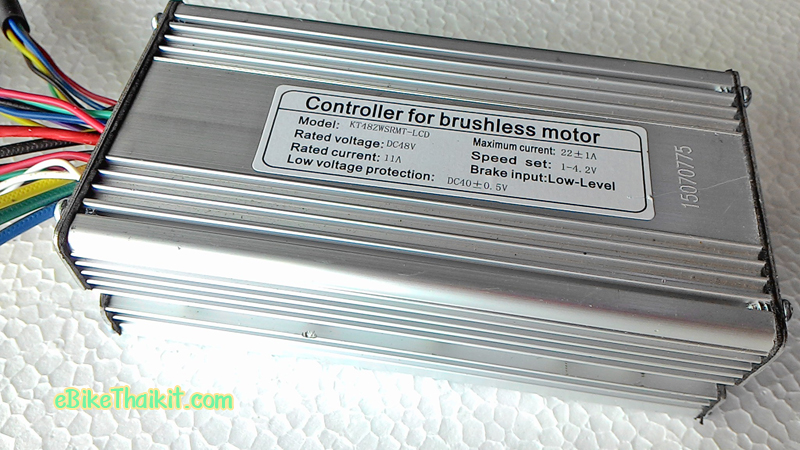

3. กล่องควบคุม 48V500W สำหรับมอเตอร์ Brushless ไม่มีเกียร์ภายใน 120º (รองรับโหมดถอยหลัง)

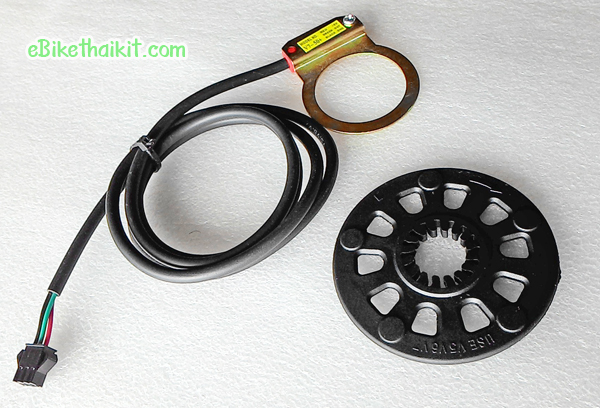

4. ชุด PAS ระบบช่วยปั่นอัจฉริยะ

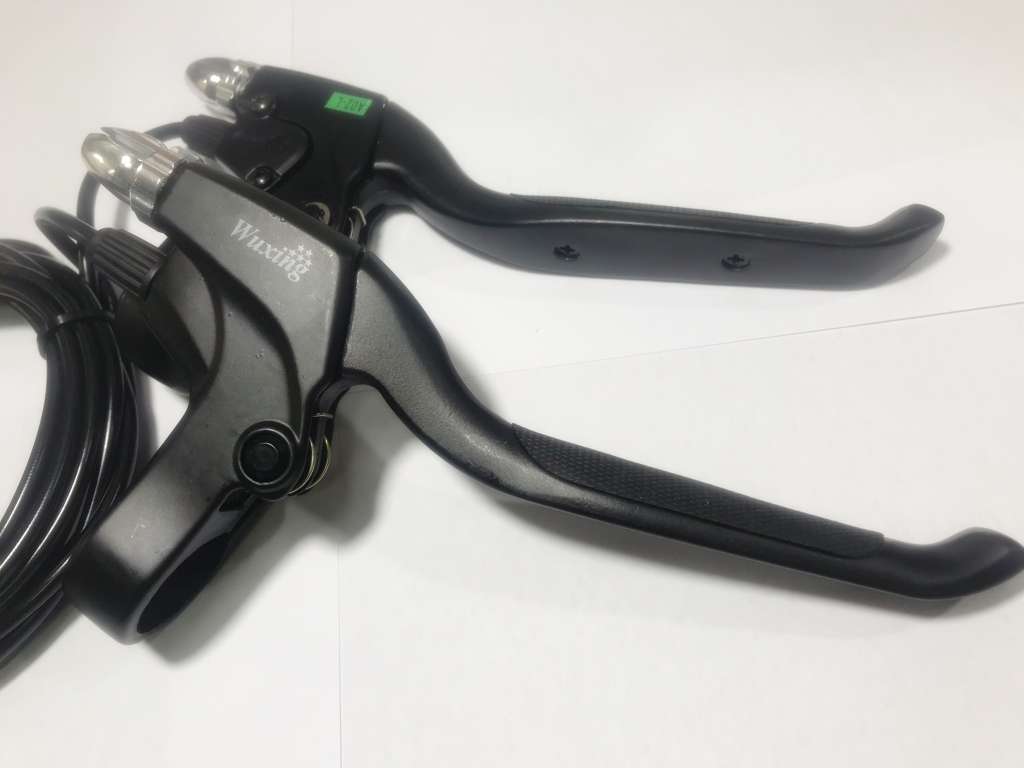

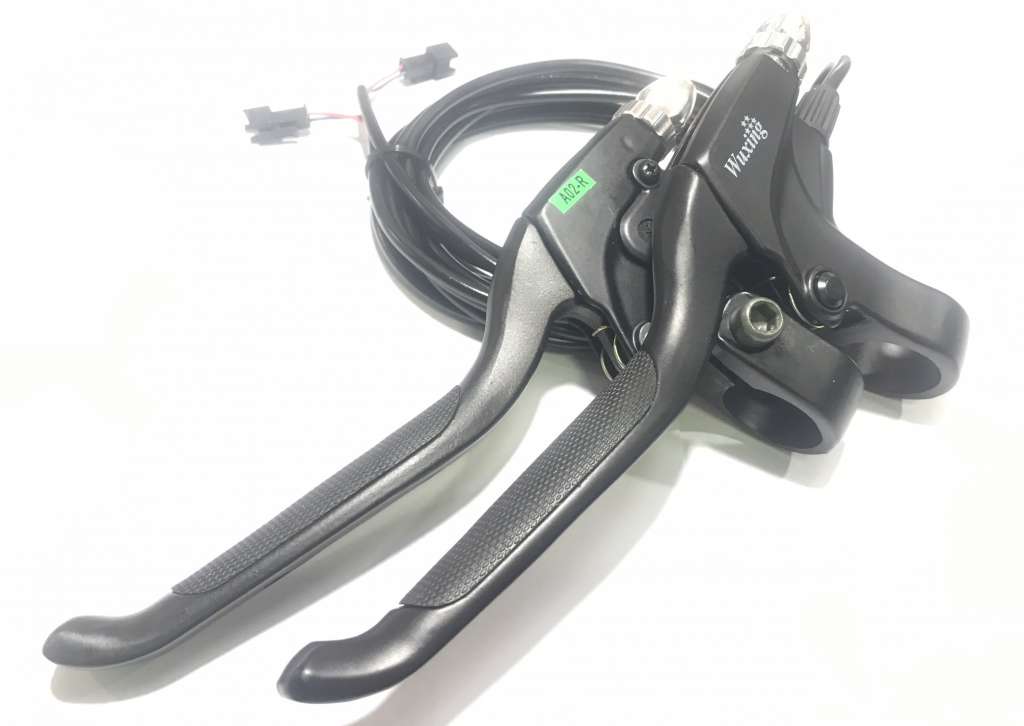

5. ชุดมือเบรค อย่างดี ซ้าย + ขวา

รายละเอียดสายไฟ :



Function Overview
KT-LCD3 meter provide you with a variety of functions such as vehicle controls and vehicle
status digitized displays to meet the trip demands.


◇ Trip time display (with displays of a single trip time (TM) and total trip time (TTM));
◇ Trip speed display (with displays of real-time speed (Km/H or MPH) and a single maximum speed (MXS) and a single average speed (AVS)
◇ Trip distance display (with displays of a single trip distance (DST) and total trip distance (ODO)
◇ Display of turned on handleDisplay of turned on handleDisplay of turned on handleDisplay of turned on handle Display of turned on handleDisplay of turned on handleDisplay of turned on handle Display of turned on handle Display of turned on handle Display of turned on handle Display of turned on handlebar bar
◇ Display of powerDisplay of powerDisplay of powerDisplay of power Display of powerDisplay of powerDisplay of power Display of powerDisplay of powerDisplay of power-assist startupassist startupassist startupassist startupassist startupassist startupassist startup assist startupassist startupassist startup assist startup
◇ Power assistant ratio (or handlebar) gear (ASSIST)
◇ 6Km/H power assistant push
◇ Cruise function (CRUISE)
◇ Battery capacity indicator
◇ Real-time battery voltage (VOL) display;
◇ Motor power and temperature (MOTOR) display;
◇ Brake display
◇ Turn on backlighting and lights
◇ Environment temperature (℃ or ℉) display;
◇ Data clearing;
◇ Fault code display;
◇ User parameter setting




DownLoad คู่มือการใช้งานแบบละเอียด ------ > คลิ๊ก

ค่าเริ่มต้นที่ Set มาจากโรงงาน :


Maximum Trip Speed : 72 km/Hrs.
Wheel Diameter : 26" (6,8,10,12,14,16,18,20,22,24,26,700 c and 28")
Metric and Imperial Units : Km/Hrs. , °C

P1 Motor Characteristic Parameter Setting  : 46 for Gearless / 87 for Small Brushless and Gear  (P1 = motor gear reduction ratio× number of rotor magnet pieces)

P2 Wheel Speed Pulse Signal Setting : 0

P3 Power Assist Control Mode Setting : 0 Speed limit by PAS Mode 1-5  / 1 Speed no limit PAS 1-5 same speed

P4 Handlebar Startup Setting : 0

P5 Power Monitoring Setting : 12  (36V System)

C1 Power-Assist Sensor and Parameter Select Setting : 02

C2 Motor Phase Classification Coding Setting : 0

C3 Power Assist Ratio Gear Initialization Setting : 8

C4 Handlebar Function Setting : 0

C5 Controller Maximum Current Adjustment Setting : 10

C6 Backlight Brightness Adjustment Setting : 3

C7 Cruise Function Setting : 0 (1 Cruise enable)

C8 Motor Operating Temperature Display Setting : 0

C9 Startup Password Setting : 0

C10 Automatically Restore Factory Setting : n

C11 Meter Attribute Selection Setting : 0

C12 Controller Minimum Voltage Adjustment Setting : 4

C13 ABS brakes of the controller and parameters of anti-charge control Setting : 0

C14 Power-assist tuning parameters Setting : 2





X5 : Speed Wheel Sensor Input
X8 : FOR / REV Function

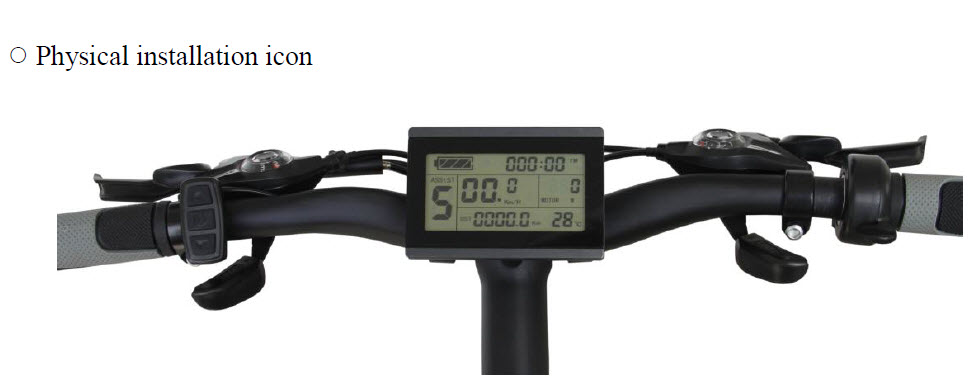

ตัวอย่างการใช้งาน LCD-003
