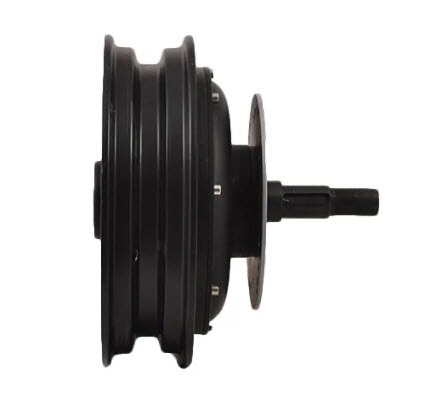

10inch 2000W Single Shaft In-Wheel Hub Motor
10inch 2000W Single Shaft In-Wheel Hub Motor
รหัสสินค้า : SS10-2000W
ราคา ฿0.00THB
จำนวน

PreOreder 10inch Single Shaft In-Wheel Hub Motor(50H) 2000W V2 Type


10inch Single Hub Motor specially designed for electric scooters ,Electric trik or 4-wheel electric vehicles, the rated power can be made 1000W,1500W,2000W,3000W or 4000W for options.

Motor Specification:

  1. Motor Type: BLDC Hub Motor with Permanent Magnets
  2. Motor design: Single axle out with 10inch rim
  3. Rim size:2.15-10
  4. Matching Tire: 3.0-10, 3.5-10
  5. Magnet Height: 50MM
  6. of Pole Pairs: 23 pairs
  7. Rated Power: 2000W
  8. Peak Power: 4000W
  9. Rated Voltage: 72V( 48-96V Can be optional)
  10. Speed: 65km/h (30-70km/h can be customized)
  11. Max No-load RPM: 850RPM
  12. Max Torque: 140N.M
  13. Max Efficiency: 88%
  14. Continious current:30A
  15. Max current:80A (Peak 100A in short time)
  16. Brake type: Disc brake
  17. Rear Fork width for installation: 200mm
  18. Winding Core material: Aluminium
  19. Cross Section of Phase wire: 8 mm2
  20. Hall sensor phasing angle: 120 degree
  21. Temperature Sensor: Optional
  22. Working Temperature: 70 degree, Peak 120 degree
  23. Waterproof Grade: IP54
  24. Color: Black or Silver
  25. W./ G..W. : 13kgs / 14kgs
  26. Package Size: 34*34*33CM



Motor drawing
