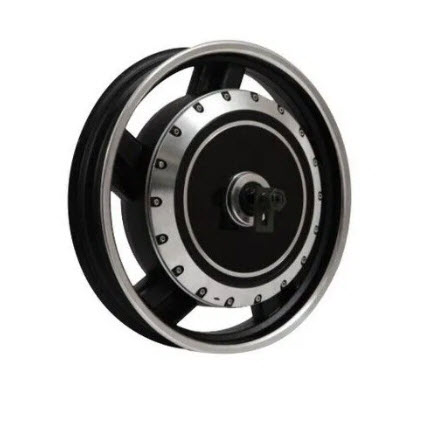

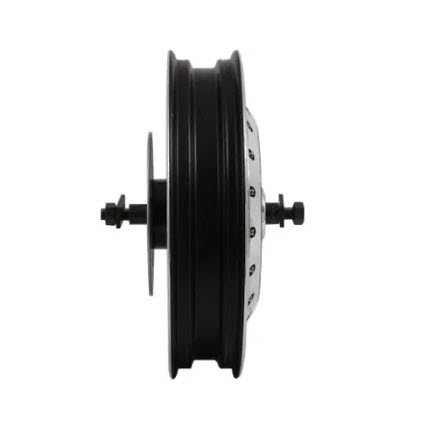

17inch 273 In-Wheel Hub Motor(28H) 2000W V2 Type
17inch 273 In-Wheel Hub Motor(28H) 2000W V2 Type 17inch 273 In-Wheel Hub Motor(28H) 2000W V2 Type
รหัสสินค้า : H17-2000W
ราคา ฿0.00THB
จำนวน

PreOrder 17inch 273 In-Wheel Hub Motor(28H) 2000W V2 Type


17inch Hub Motor specially designed for electric scooters and electric motorcycle, the rated power can be made 2kw,3kw,4kw,5kw,6kw,7kw or 8kw. Max speed can be customized from 30-120KMPH.

Motor Specification:

  1. Motor Type: BLDC Hub Motor with Permanent Magnets
  2. Motor design: Double axle out with 14inch Aluminium rim
  3. Rim size:3.5×17
  4. Matching Tire: 130/70-17
  5. Magnet Height: 28MM
  6. of Pole Pairs: 23 pairs
  7. Rated Power: 2000W
  8. Peak Power:5200W
  9. Rated Voltage: 72V( 48-96V Can be optional)
  10. Speed: 70km/h (30-75km/h can be customized)
  11. Max No-load RPM: 900RPM
  12. Max Torque: 170N.M
  13. Max Efficiency: 87%
  14. Continious current:30A
  15. Max current:80A
  16. Brake type: Disc brake
  17. Rear Fork width for installation: 200mm
  18. Winding Core material: Aluminium
  19. Cross Section of Phase wire: 8 mm2
  20. Hall sensor phasing angle: 120 degree
  21. Temperature Sensor: Optional
  22. Working Temperature: 70 degree, Peak 120 degree
  23. Waterproof Grade: IP54
  24. W./ G..W. : 20kgs / 21kgs
  25. Package Size: 44*43*34CM
